AC Not Cold? Compressor, Clutch, or Control Module—How We Diagnose It

Essential Guide to Car AC Repair Winston Salem
in AC Repairby Chris

Our diagnostic flow for car ac repair winston salem

A predictable result comes from a predictable process. Here’s how we isolate the fault on every car ac repair.

Controls & modules (HVAC head, sensors, CAN health)

We begin with a data‑driven interview: verify ambient temp, recirc status, fan speed, and vent temperature under consistent conditions. Next, we scan the HVAC and powertrain modules for DTCs, then review live data—evaporator temperature, sunload, in‑car sensor, blend/mode door position, and high‑side pressure sensor. Many “no‑cool” complaints are electronic (mis‑calibrated blend doors, clogged cabin air filter, failed evaporator sensor) rather than a refrigerant issue. Consumer and industry guidance consistently flags blend‑door and filtration faults as common non‑refrigerant causes, which is why they’re step one in our workflow. (AAA)

Refrigerant identification, pressures, and leak checks

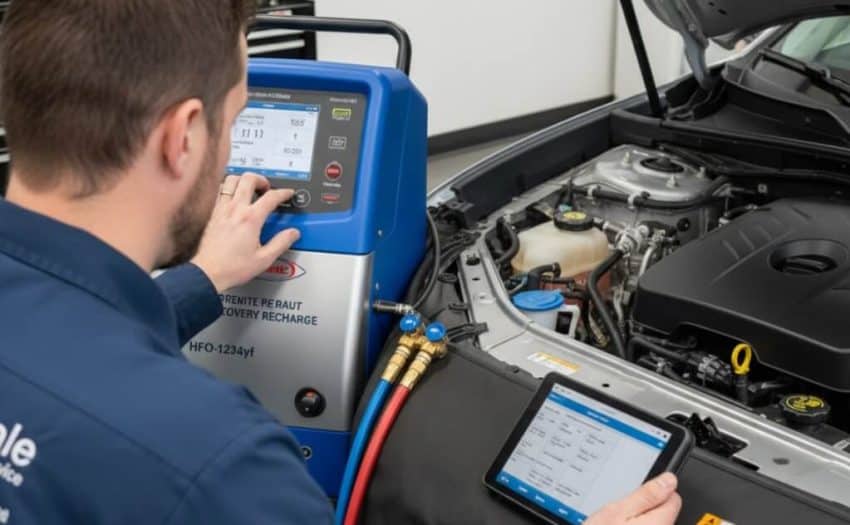

Modern vehicles use either R‑134a or R‑1234yf—they’re not interchangeable and use distinct service fittings and labels. We confirm refrigerant type before attaching equipment, then measure static and operating pressures, condenser‑fan operation, and stabilized vent temperatures at set RPM. For leaks, we use electronic detectors that meet SAE J1627 performance criteria, and we supplement with UV dye or a nitrogen/trace‑gas test when needed. (ANSI Webstore)

Electrical tests for clutched and variable‑displacement compressors

  • Clutched units: Verify power/ground, relay function, and clutch air gap; marginal clutches often fail at idle when head pressure spikes.
  • Clutchless/variable‑displacement units: Many late‑model systems use an externally controlled variable‑displacement (ECV) compressor. There’s no “click”—the ECV valve modulates output via a duty‑cycle command. We test command, valve resistance, and system response; parts‑darting at these systems is expensive and avoidable. OEM bulletins and engineering notes outline ECV behavior and diagnostic expectations. (NHTSA Static)

Result: a car ac repair winston salem job that holds up when July heat returns because we matched the fix to the root cause.

What typically fails (and why)

Compressor wear and contamination
 Internal scoring or swash‑plate wear reduces displacement; debris migrates to the metering device and parallel‑flow condenser. Correct repairs address root cause, condenser service/replacement (many are non‑flushable), the proper oil type/amount, and any airflow deficits.

Clutch & drive circuit
 A weak relay, poor ground, failed coil, or incorrect air gap causes intermittent cooling—often most obvious at long lights. We compare commanded load against actual pressure/vent temps before calling a compressor.

Controls & sensors
 A bad evaporator temperature sensor or pressure transducer can prematurely cut compressor command. We validate sensor plausibility against physical conditions and recalibrate actuators where required.

Airflow & heat exchange
 Clogged condenser fins, missing shrouds, or a failing radiator/condenser fan spike high‑side pressure at idle—classic “cold while cruising, warm at lights.” Good car ac repair starts with airflow.

Cabin filtration & evaporator hygiene
 A plugged cabin filter throttles evaporator CFM and mimics low charge; deodorizing and cleaning the core often restores performance and eliminates odors. (AAA)

R‑134a vs. R‑1234yf: cost, safety, and service realities

Environmental impact
 EPA’s Technology Transitions table lists R‑134a ~1430 GWP vs. R‑1234yf ~1 GWP (100‑year basis), explaining the industry shift to R‑1234yf. Expect different service equipment and tighter charge windows on many yf platforms. (EPA)

Safety & fittings
 R‑1234yf is A2L (mildly flammable). SAE J639 and EPA SNAP use‑conditions require warning labels, relief features, and unique low/high‑side couplers to prevent mixing refrigerants. That’s why our machines and fittings differ by refrigerant type. (legacy.sae.org)

Service implications
 Half an ounce matters on yf systems. Accurate recovery, evacuation, weighed charge, and oil specification separate durable car ac repair from comebacks. We verify charge mass and oil type against the OEM label before the machine ever runs.

Legal & safety basics you should expect from any car ac repair winston salem shop

  • Section 609 certification for anyone servicing MVAC systems for pay, with records and approved recover/recycle equipment on site. (EPA)
  • No venting—ever. The Clean Air Act prohibits intentional venting of refrigerant; recovered product is recycled or reclaimed. (EPA NEPIS)
  • Correct fittings, correct refrigerant. SAE J639 mandates unique service fittings and labels for each refrigerant to prevent cross‑contamination and improve safety. (ANSI Webstore)

These are non‑negotiable. They protect your vehicle, your warranty, and the people working on it.

Maintenance that prevents summer comebacks

  • Airflow first. Keep condenser/radiator fins clear; verify both fan speeds work. Poor airflow will defeat even a perfect charge.
  • Cabin filter & evaporator care. Replace the filter on schedule; treat evaporator odor/mildew. Reputable consumer advisories list filtration and blend‑door faults as top contributors to weak cooling. (AAA)
  • Charge accuracy. Over‑ or under‑charge raises head pressure and reduces cooling—especially on yf systems with tight tolerances.
  • Electrical health. Low‑voltage events from weak batteries/alternators confuse HVAC modules and ECV valves; folding an electrical check into car ac repair prevents phantom faults.

Repair vs. “recharge only”—how we decide

Recharge‑only is appropriate only after we confirm no leaks and a known cause for charge loss (e.g., post‑repair evacuation). Otherwise, refilling a leaking system is a short‑term patch that risks oil starvation and repeat failure.

  • Leak tracing with standards. We use electronic detectors compliant with SAE J1627, plus UV dye or nitrogen/trace‑gas as needed. (SAE International)
  • Compressor replacement done right. If a compressor failed mechanically, we address the condenser (non‑flushable parallel‑flow designs), replace the metering device, add correct oil, and perform any required module calibrations.
  • Post‑repair validation. Stabilized vent temps, pressure targets at known RPM, and actuator recalibration close the loop—key to durable car ac repair winston salem outcomes.

Why drivers choose Cloverdale for car ac repair winston salem

We diagnose before we replace. That discipline compresses downtime and keeps you cool when the next heat dome parks over the Triad. While the vehicle is already on a bay, you can bundle AC work with routine items like Oil Change Service or a safety inspection like Brake Repair—efficient and convenient.


Ready for data‑driven results, not guesswork? Lock in car ac repair winston salem with a team that treats cooling complaints like the electrical‑mechanical puzzles they are. Start with Services, loop in Auto Electrical if modules are involved, and secure your slot on Contact Us.



FAQs

1) Why is my AC cold on the highway but warm at stoplights?
 Weak condenser airflow at idle raises high‑side pressure and output drops. We verify fan operation, condenser condition, and charge accuracy before calling parts—core to reliable car ac repair.

2) Do I have R‑1234yf or R‑134a?
 Your hood label and service couplers identify the refrigerant. SAE J639 mandates unique fittings and labels to prevent mixing; many late‑model vehicles use R‑1234yf for its very low GWP. (ANSI Webstore)

3) Is a “top‑off” safe?
 Only after we prove there’s no leak. Otherwise, adding refrigerant masks the problem and risks compressor damage. We use SAE J1627‑compliant leak detection in our car ac repair winston salem workflow. (SAE International)

4) Can shops legally vent refrigerant?
 No. Intentional venting violates the Clean Air Act. Certified techs recover, recycle, or reclaim refrigerant. (EPA NEPIS)

5) My compressor doesn’t “click.” Normal?
 On many vehicles, yes. Variable‑displacement compressors modulate via an ECV valve and may not use a traditional on/off clutch. We test command signals, valve resistance, and system response. (NHTSA Static)

6) What vent temperature should I expect?
 There’s no universal number; we look at delta‑T (drop from ambient) with pressures and airflow. In Winston‑Salem’s July heat, recirc and fan strategy matter. (Weather Spark)

7) Do cabin filters really matter?
 Yes. A clogged filter throttles evaporator CFM and mimics low charge; replacing it is one of the fastest wins in practical car ac repair. (AAA)

8) Why does the estimate mention fittings and oil type?
 Because J639 and OEM specs require the correct fittings and oil for each refrigerant. Using the wrong materials risks damage and non‑compliance. (ANSI Webstore)
